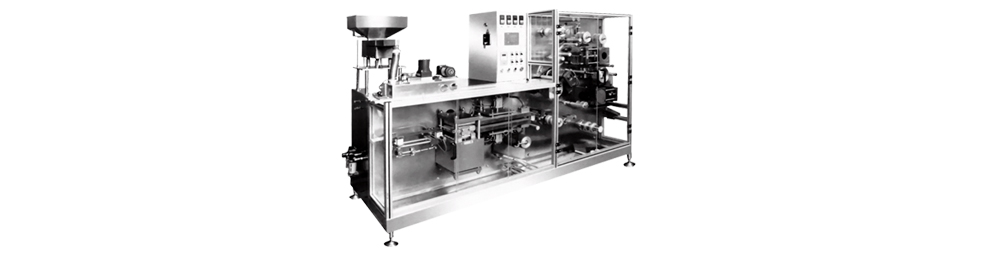

DPH130輥板式泡罩包裝機
DPH130 ROLLER AND PLATE COMBINING TYPE BLISTER PACKING MACHINE
 特點
人機界面、PLC程序控制、變頻調速；
板式正壓吹塑成型，棍式封合，泡罩挺實，封合質量好。
無橫邊沖裁，節省包裝材料；
更換模具快捷，調整方法簡單；
工作效率高，故障率低；
工作條件符合GMP標準。
Features
The computer human interface PLC programe control frequency conversion variable speeds.
The plate forming by positive pressurethe roller type sealing the blister is straightthe sealing quality is good.
There is no horizontal side cutting it can save packing materials.
Quickly change the sharpener the adjusting way is simple.
The work efficiency is high and the breakdown rate is low.
The working conditions conform to GMP Standard.
- 適用范圍
素片、糖衣片、異型 片、膠蛋、丸粒等藥品包裝及小型糖果的包裝。
Application
Applicable for the package of tabletssugar - coated tabletsgrotesque tabletscapsulespills etc. medicines and miniature candies
- 技術參數 Specifications
| 成型最大面積Max forming area |
210×145mm
(即板塊最大長度105mm，PVC最大寬度145mm) 。
( i.e.Max length of the plate 105mm，PVC max width 145mm)
|
| 成型最大深度 Max forming depth |
10mm |
| 夾持步進最大距離Max inching while clipping |
210mm |
| 沖裁次數可達Cutti ng frequency |
≤240板/分(plates/ min)（每次沖二板。根據板塊大小、有無斷裂線及所包裝藥品，沖切次數可進行適當調整）。
(Each time cuts two plates.The cutting times is adjustable according?lo thesizes of the plateswhether there is break line and the medicine to be packed.)
|
| 機器總功率Power |
9.22kW |
| 電壓Voltage |
380V/50Hz |
| 耗氣量Air consumption?????? |
300L/Min. |
| 耗水量Water consumption |
300L/H. |
| 電壓 Voltage |
380V/50Hz |
| 外形尺寸（長×寬×高）S ize (L×W×H)? |
3000×880×l730mm |
| 重量 Weight |
1600kg |
|
